I am installing CentOS 6.7 in my laptop, I have Windows 10, Centos 6.7 and Ubuntu 18 installed, but CentOS is the only OS that is not detecting any network interface, wired neither wifi.

I used NetworkManager to automatic configuration, but it seems that is not being able to configure it.

My laptop is a MSI GE60-20E. SN: GE60 2OE-223XESK1402000204

Outputs are: (sorry for quality, I don't have any internet on my laptop in CentOS)

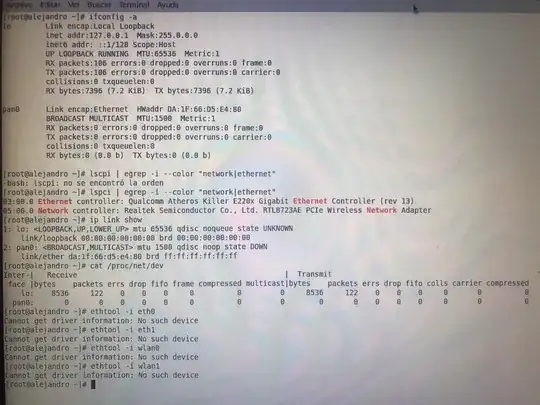

Networks

I need to configure it. Windows and Ubuntu is detecting everything.

UPDATE new outputs with nmcli

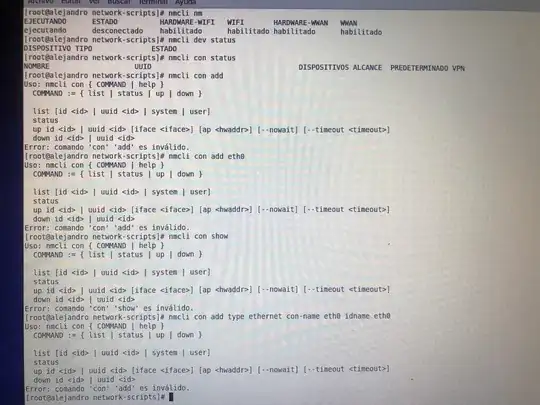

Other outputs

Alejandro L.
  • 101
  • 3
  • is it a newer MSI laptop? I have the MSI ps42 and CentOS 7.5 worked on it. – thebtm Feb 14 '19 at 18:29
  • Is not new, it has an i5-4200U. I bought in 2014 May. SN: GE60 2OE-223XESK1402000204 – Alejandro L. Feb 14 '19 at 18:33
  • `ls -la /etc/sysconfig/network-scripts/` do you have any configurations already setup? if not, you may have to set that up. – thebtm Feb 14 '19 at 18:36
  • The thing is, that I don't know which to configure because usually is **eth0** or **wlan0**, and the system does not recognize those interfaces. I mean, I create `etc/sysconfig/network-scripts/ifcfg-eth0` and configure it but nothing happens. – Alejandro L. Feb 14 '19 at 18:38
  • related: https://unix.stackexchange.com/questions/186705/how-do-i-use-nmcli-to-create-a-wifi-connection-connect-to-ssid-over-wpa – thebtm Feb 14 '19 at 18:53
  • why are you putting CentOS 6.7? You could use CentOS 7 on your system. – thebtm Feb 14 '19 at 19:54
  • Well, I was considering on using CentOS 6.10, I'm doing some Hadoop Ecosystem configuration, and everywhere I go, they use CentOS (Cloudera Quickstart is using CentOS 6.7). So I thought it was a good idea using the same OS everybody use for Hadoop Ecosystem... @thebtm – Alejandro L. Feb 14 '19 at 20:03
  • 1
    Minimal support was added in [vanilla kernel 3.10](https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/commit/?id=ab69bde6b2e9c37456eeb0051a185446336aef9f) : chances are this would work on CentOS 7 (not 6.x) instead. – A.B Feb 14 '19 at 22:16
  • Okay seems that I should use Fedora or CentOS 7 but I have to test in a VM before. Thanks for the answers! – Alejandro L. Feb 14 '19 at 22:19
  • wifi: perhaps kernel 3.8+ required https://cateee.net/lkddb/web-lkddb/RTL8723AE.html – A.B Feb 14 '19 at 22:28

1 Answers1

0

eth0 is for the wired connection
wlan0 is for the wireless connection

For configuring a network connection, if it hasn't already been completed automatically, there is a few ways you can go about it from the command line and from the GUI (though I dont have that information handy at the moment)

If you are missing the files in /etc/sysconfig/network-scripts/ then you have to tell nmcli to create the connections, it helps to do checks before you actually start making connections.

Starting with an nmcli dev show to make sure you can see all the hardware with nmcli

[root@linux-repository ~]# nmcli dev show
GENERAL.DEVICE:                         eth0
GENERAL.TYPE:                           ethernet
GENERAL.HWADDR:                         XX:XX:XX:XX:XX:XX
GENERAL.MTU:                            1500
GENERAL.STATE:                          100 (connected)
GENERAL.CONNECTION:                     eth0
GENERAL.CON-PATH:                       /org/freedesktop/NetworkManager/ActiveConnection/1
WIRED-PROPERTIES.CARRIER:               on
IP4.ADDRESS[1]:                         X.X.X.X/24
IP4.GATEWAY:                            X.X.X.X
IP4.ROUTE[1]:                           dst = X.X.X.0/24, nh = 0.0.0.0, mt = 100
IP4.ROUTE[2]:                           dst = 0.0.0.0/0, nh = X.X.X.1, mt = 100
IP4.DNS[1]:                             X.X.X.X
IP4.DNS[2]:                             8.8.8.8
IP4.DNS[3]:                             8.8.4.4

GENERAL.DEVICE:                         lo
GENERAL.TYPE:                           loopback
GENERAL.HWADDR:                         00:00:00:00:00:00
GENERAL.MTU:                            65536
GENERAL.STATE:                          10 (unmanaged)
GENERAL.CONNECTION:                     --
GENERAL.CON-PATH:                       --
IP4.ADDRESS[1]:                         127.0.0.1/8
IP4.GATEWAY:                            --
IP6.ADDRESS[1]:                         ::1/128
IP6.GATEWAY:                            --

then you want to see if you can see already configured connections with nmcli con show

[root@linux-repository ~]# nmcli con show
NAME  UUID                                  TYPE      DEVICE
eth0  0c7ab467-dbdf-41c2-b3a3-882760879594  ethernet  eth0

once you have the device name from nmcli dev show just add a generic connection with nmcli con add type ethernet con-name <dev name> ifname <dev name> and this should add a dhcp connection to your wired connection to help get you going to be online again; for wireless, I recommend checking out a nmtui tutorial.

[root@linux-repository ~]# nmcli con add type ethernet con-name eth0 ifname eth0
Connection 'eth0' (058aac84-c024-46bc-9847-b6e8044fb9c6) successfully added.

NMCLI & NMTUI

CentOS 7 Network Configuration Using nmtui Tool here is an CentOS tutorial on nmcli
RHEL 7 nmcli [this is pretty much the same as the nmcli for RHEL 6, Centos 7 & 6]
also can run man nmcli the manual for the tool is also on the system.

ifcfg

How To Configure Static IP On CentOS 6
an example of setting up a network via the ifcfg files, you may have to add the NM_CONTROLLED="no" if you dont want network manager to mess with it.
