Ubuntu 18.04 New Netplan / IP Configuration (pointopoint?)

Question

I have a Root-Server with Proxmox installed. Until now, I always had Ubuntu 16. Now i upgraded a VM to Ubuntu 18 and I need an example for the new netplan configuration.

This was my old interfaces file:

auto ens18
    iface ens18 inet static
    address 195.201.52.XXX
    netmask 255.255.255.255
    pointopoint 195.201.8.YYY
    gateway 195.201.8.YYY
    dns-nameservers 213.133.98.98 213.133.99.99 213.133.100.100 8.8.8.8

Because I couldn't find the option pointopoint with the new netplan I'm struggling to activate this VM. I know I could simply install ifupdown again. But if there is a possibility, I would like to keep the new netplan.

Additional info:
Have a look at my Configuration Files: https://pastebin.com/Havqfw7t

IPv4 Forwarding is enabled on both Guest and Host System.

score 7 · Answer 1 · answered May 10 '18 at 19:34

You have the right idea in your "additional info" pastebin. Applying the same IP addresses as your question:

network:
  version: 2
  renderer: networkd
  ethernets:
    ens18:
      dhcp4: no
      dhcp6: no
      addresses: [195.201.52.XXX/32]
      routes:
      - to: 0.0.0.0/0
        via: 195.201.8.YYY
        on-link: true
      nameservers:
        addresses: [213.133.98.98,213.133.99.99,213.133.100.100,8.8.8.8]

However, you seem to have the same IP address on multiple interfaces in your host config; that might not help.

Basically, all your need for point-to-point is to add a static route to 0.0.0.0/0 via the IP of your peer; and make sure to set the route 'on-link: true'.

We put this up on the netplan.io website, too: https://netplan.io/examples#directly-connected-gateway

score 0 · Answer 2 · edited Nov 07 '18 at 08:42

I am using Ubuntu 18 on different hosts with proxmox. My netplan configuration inside vm and container as follows:

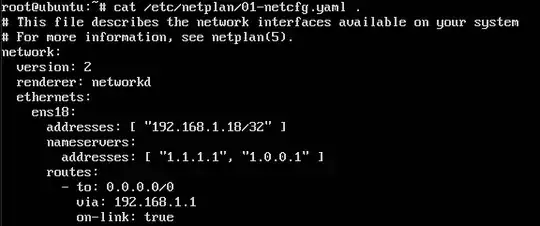

/etc/netplan/01-netcfg.yaml:

# This file describes the network interfaces available on your system
# For more information, see netplan(5).
network:
  version: 2
  renderer: networkd
  ethernets:
    ens18:
      addresses: [ "192.168.1.18/32" ]
      nameservers:
        addresses: [ "1.1.1.1", "1.0.0.1" ]
      routes:
        - to: 0.0.0.0/0
          via: 192.168.1.1
          on-link: true

192.168.1.18 is the ip of my container/vm
192.168.1.1 is the ip of my gateway
1.1.1.1 and 1.0.0.1 are public dns server
