How to use UART pins on Orange Pi zero?

Question

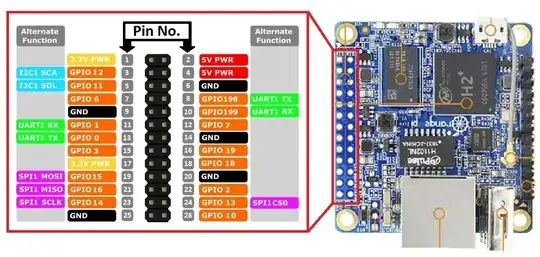

I want to use UART1 or 2 (see picture) on the Orange Pi zero. But when I try to open the port with screen /dev/ttyS1

Screen terminates.

I found here that I needed to add "overlays=sun8i-h3-uart1" in /boot/armbianEnv.txt but someone on that forum said that that feature is not yet supported. I tried, but I still have the same problem.

Any suggestions?

uname -a
Linux orangepizero 4.11.9-sun8i #1 SMP Thu Jul 13 16:09:43 CEST 2017
armv7l armv7l armv7l GNU/Linux

Do you have the appropriate cable? – Rui F Ribeiro Feb 23 '18 at 18:23 — Rui F Ribeiro, Feb 23 '18 at 18:23

score 2 · Accepted Answer · answered Dec 03 '17 at 12:55

2

My config on Orange Pi Zero for UART on mainline kernel:

overlay_prefix=sun8i-h3
overlays=usbhost2 usbhost3 uart1 uart2

Both UARTs work fine.

$ uname -a
Linux orangepizero 4.13.16-sunxi #20 SMP Fri Nov 24 19:50:07 CET 2017 armv7l armv7l armv7l GNU/Linux

answered Dec 03 '17 at 12:55

Dmitry

136
4

So, could be this issue related to kernel version? (Dmitry is on the 4.13 kernel series while MatMis is on 4.11)... – mattia.b89 Dec 03 '17 at 14:13
