I want to know the difference between ttyS0, ttyUSB0 and ttyAMA0 on Linux.

Chan Kim
  • 367
  • 1
  • 5
  • 22
user5671087
  • 431
  • 1
  • 4
  • 3
  • 2
    You can look up many device types in the kernel docs: https://git.kernel.org/cgit/linux/kernel/git/torvalds/linux.git/tree/Documentation/devices.txt – phg Sep 02 '16 at 07:30
  • Link in comment above is dead but I believe this is the updated path: https://github.com/torvalds/linux/blob/5bfc75d92efd494db37f5c4c173d3639d4772966/Documentation/admin-guide/devices.rst – ACK_stoverflow May 19 '22 at 15:35

2 Answers2

34

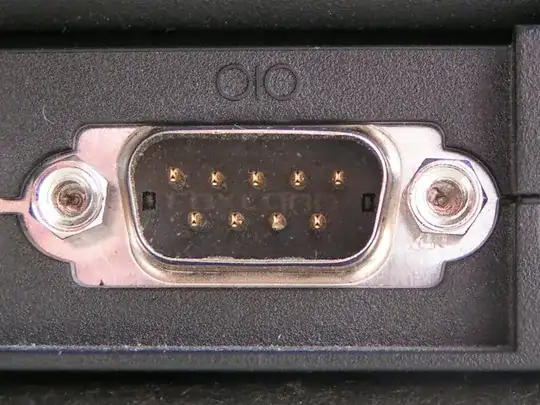

ttyS0

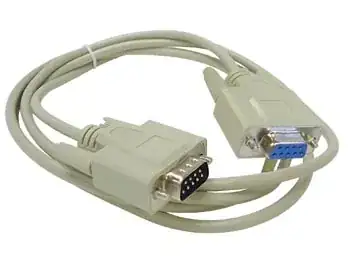

What you get on the host when you connect to target with this:

enter image description here

Source

This port is not present on most laptops or small devboards, but is still present on many desktops, and is very convenient for OS developers as mentioned at: https://askubuntu.com/questions/104771/where-are-kernel-panic-logs/932380#932380

You also get it with qemu -device isa-serial.

For example could hook up two desktops with one of those cables, and communicate directly between them to get a shell on the remote desktop from your own. From Linux computer 1 you would run:

screen /dev/ttyS0 115200

and then computer 2 would reply with the login prompt, and then you can log in from computer 1 into computer 2.

So this is a bit like SSH and can be seen as an early form of networking. I think those cables cannot be too long or else the signal is lost though, and you can't do as much without the TCP/IP addressing/packet mechanisms.

ttyUSB0

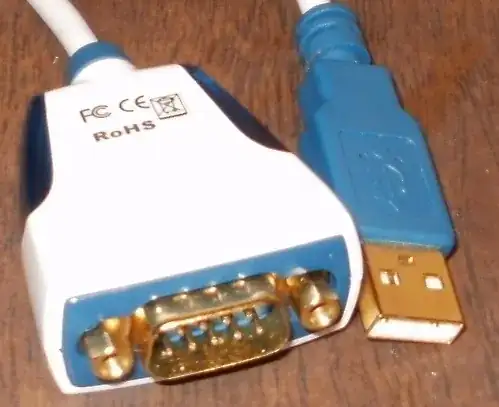

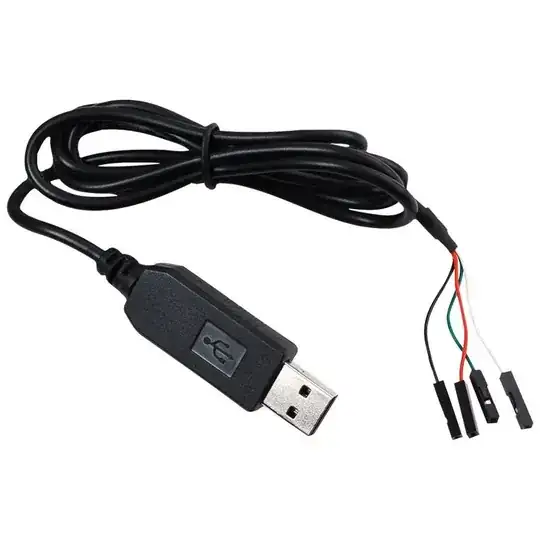

What you get on host when using something like:

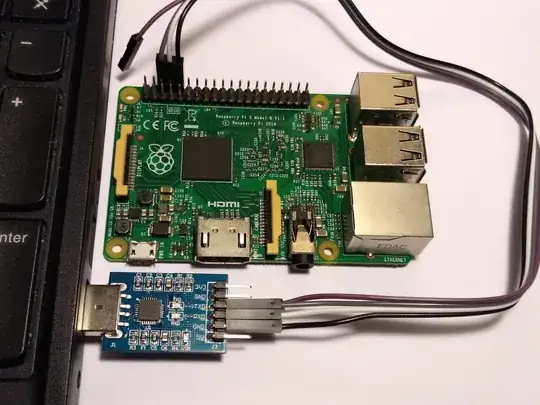

I also get it when I connect the GPIOs of my Raspberry Pi to my laptop to get a shell on a Raspberry Pi without a screen!

enter image description here

And another more integrated RPI connector version of the above:

Source

A concrete RPI example at: https://stackoverflow.com/questions/22054578/how-to-run-a-program-without-an-operating-system/32483545#32483545

ttyACM0

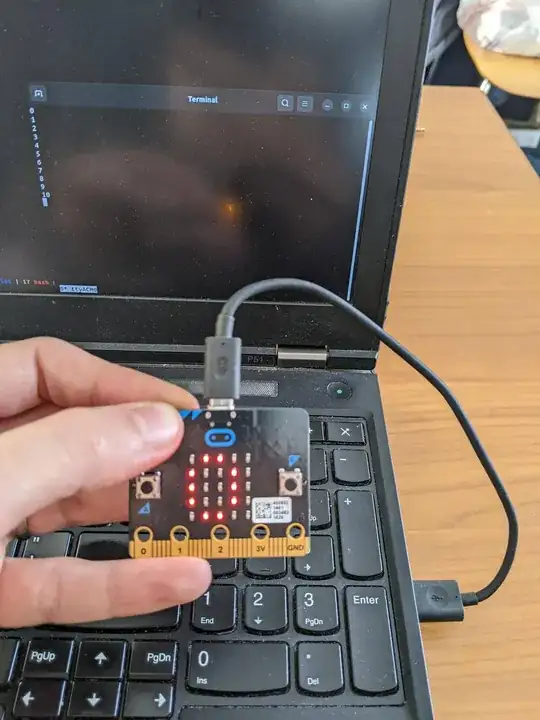

This is the TTY interface that what you get when you connect your computer to either of:

via an USB cable. They've just implemented a TTY directly on the same USB that can power on and program the device, it is very convenient!

enter image description here

ttyAMA0

Haven't used this one on a real board yet.

It seems that I would be able to connect my desktop with a serial port to my RPI with that interface: https://raspberrypi.stackexchange.com/questions/69697/what-is-dev-ttyama0

I've used it with QEMU: https://github.com/buildroot/buildroot/tree/27d7ef126bc7f4eb1a757128466befa11245bbfd/board/qemu/arm-versatile

It seem that AMA is a shortened form of AMBA? https://www.raspberrypi.org/forums/viewtopic.php?t=8075 But why would they shorten a 4 character acronym?!

The only interesting Linux kernel hits are under: https://github.com/torvalds/linux/blob/v4.16/drivers/tty/serial/amba-pl011.c#L2488 so it seems to be strictly linked to the PL011: http://infocenter.arm.com/help/index.jsp?topic=/com.arm.doc.ddi0183g/index.html which is a UART controller licensed by ARM, which I think is the dominating implementation.

ttySAC0

Kamil reported that his Samsung Artik 710, so another one for the collection.

Ciro Santilli OurBigBook.com
  • 17,176
  • 4
  • 113
  • 99
  • What about ttySAC0? I have this on ARM64 architecture Samsung Artik 710 device. – Kamil Nov 06 '18 at 00:36
  • @Kamil OK, a new one for me then :-) How do you connect to it from host to see `ttySAC0`? Which cable? Send a photo if you can. – Ciro Santilli OurBigBook.com Nov 06 '18 at 08:36
  • I get a ttyACM0 when I plug in an Arduino into Linux. – Mike May 19 '20 at 21:19
  • 3
    Technically, `ttyS0`'s original meaning seems to be "the first serial port *implemented using a UART compatible with the original IBM PC UART, the 8250 chip*. The `ttyAMA0` on ARM and e.g. `ttySAC0` would then mean "the first serial port implemented using another specific hardware implementation". `ttyUSB0` refers to the first USB-to-serial converter. `ttyACM0` refers to an emulated serial connection using USB's CDC ACM (Communication Device Class, Abstract Control Model), which indicates that no actual RS-232-style serial line may be present and HW parameters like baud rate may be ignored. – telcoM Oct 20 '20 at 07:42
19
  • ttyS0 is the device for the first UART serial port on x86 and x86_64 architectures. If you have a PC motherboard with serial ports you'd be using a ttySn to attach a modem or a serial console.
  • ttyUSB0 is the device for the first USB serial convertor. If you have an USB serial cable you'd be using a ttyUSBn to connect to the serial port of a router.
  • ttyAMA0 is the device for the first serial port on ARM architecture. If you have an ARM-based TV box with a serial console and running Android or OpenELEC, you'd be using a ttyAMAn to attach a console to it.
Satō Katsura
  • 13,138
  • 2
  • 31
  • 48
  • 3
    There's more at http://unix.stackexchange.com/a/127260/5132 . – JdeBP Sep 02 '16 at 17:37
  • are these 3 distinct serial port you can read from each one separately at the same time? and attach 3 different device 1 to each of these? – Lightsout Apr 19 '19 at 03:59
