High load average: Which processes are waiting in the queue?

Question

I have an Ubuntu server running Redis, which suffers from a high load problem.

Forensics

Uptime

# uptime
05:43:53 up 19 min,  1 user,  load average: 2.96, 2.07, 1.52

sar

# sar -q
05:24:00 AM       LINUX RESTART

05:25:01 AM   runq-sz  plist-sz   ldavg-1   ldavg-5  ldavg-15   blocked
05:35:04 AM         0       116      3.41      2.27      1.20         4
Average:            0       116      3.41      2.27      1.20         4

htop

The CPU is utilization in htop is embarrassingly low:

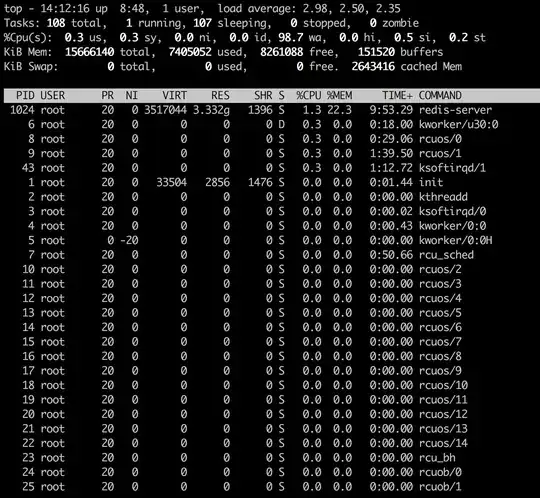

top

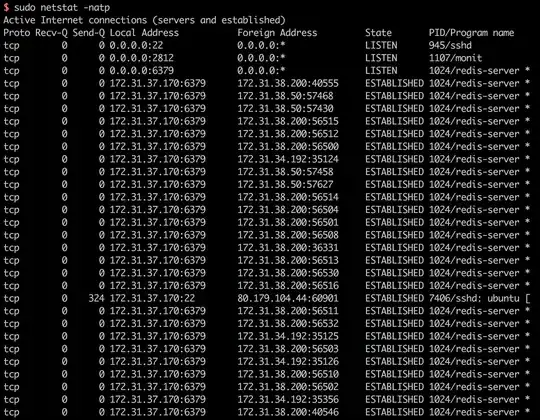

netstat

34 open redis-server connections:

$ sudo netstat -natp | grep redis-server | wc -l
34

free

$ free -g
             total       used       free     shared    buffers     cached
Mem:            14          6          8          0          0          2
-/+ buffers/cache:          4         10
Swap:            0          0          0

How do I know which processes are causing the high load, waiting to enter the Running state? Is the number of connections too high?

You should look at the regular `top` which in my opinion gives a clearer reading. From what you show, there is most likely I/O bound processes (intensive hard drive or network usage). — Julie Pelletier, Aug 06 '16 at 06:02
How many CPUs/threads does the server have, why do you consider that number high? — Mat, Aug 06 '16 at 06:18
@Mat: What is strange and making me curious about what is really running is that the load is near 3 while CPU activity is very low. I really wonder why someone would post this information asking such a weird question. If OP is not trolling or faking the `htop` results, then he should provide more details. — Julie Pelletier, Aug 06 '16 at 06:38
The regular `top` heading would be interesting although I'd actually prefer to see the whole page to get a better perspective of what is running. I doubt you have secret software which would incriminate you but feel free to hide these names if needed. — Julie Pelletier, Aug 06 '16 at 07:01
@JuliePelletier Added forensics data, including full-screenshot of `top`. — Adam Matan, Aug 06 '16 at 14:15
I am having the same problem. Have you ever managed to solve this issue, @AdamMatan ? — Raul Chiarella, Jul 23 '22 at 18:12

score 16 · Accepted Answer · answered Aug 06 '16 at 15:19

You're seeing the unexpected loadavg because of high iowait. 98.7 in the wa section of top shows this. From your screenshots I see the kworker process is also in uninterruptible sleep (state of D within top) which occurs when a process is waiting for disk I/O to complete.

vmstat gives you visibility into the run queue. Execute vmstat 1 in typical sar fashion for updates every second.

The r column shows runnable/running processes which the kernel uses to calculate loadavg and the b column shows processes blocked waiting for disk I/O aka uninterruptible sleep. Processes in b are added to the loadavg calculation, which is how iowait causes mysterious loadavg.

So to answer your question of how to see which procs are causing high loadavg, in your case of iowait, use top/ps to look for procs in a state of D then troubleshoot from there.

Thanks. Seems like I'm having too many open Redis connections. Investigating, will update here. — Adam Matan, Aug 08 '16 at 08:30
@AdamMatan can you please update the result of investigation here, I am also facing the same issue. Thanks — pushpendra chauhan, May 10 '18 at 07:11

score 4 · Answer 2 · answered Aug 06 '16 at 14:39

Linux, unlike most if not all other Unix like OSes, is not only counting processes using a CPU or waiting for a CPU in the run queue as a reference for its load calculation, but also add the number of processes (threads actually) being in uninterruptible state, i.e. waiting for for a disk or network I/O to complete. The latter are actually idle, i.e. not using the CPU.

There is then probably nothing to worry about your (not so) high load. The processes your are looking for are likely the single threaded redis plus transcient kernel threads.
