Albeit TCP and UDP are part of TCP/IP, both belong to the same TCP/IP or OSI layers, and both are a layer above IP, they are different protocols.
http://www.cyberciti.biz/faq/key-differences-between-tcp-and-udp-protocols/

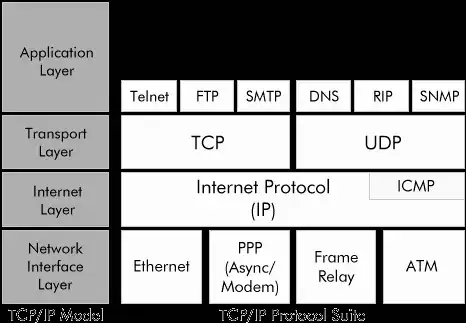

Transmission Control Protocol (TCP) and User Datagram Protocol (UDP) are
two of the core protocols of the
Internet Protocol suite. Both TCP and UDP work at the transport layer
TCP/IP model and both have a very different usage.
TCP is a connection-oriented protocol. UDP is a connectionless protocol.
(source: ml-ip.com)
Some services do indeed answer to TCP and UDP ports at the same time, as is the case of DNS and NTP services, however that is not certainly the case with web servers, which normally only answer by default to port 80/TCP (and do not work/listen at all in UDP)
You can list your UDP listenning ports in a linux system with:
$sudo netstat -anlpu
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
udp 0 0 0.0.0.0:1900 0.0.0.0:* 15760/minidlnad
udp 0 0 0.0.0.0:5000 0.0.0.0:* 32138/asterisk
udp 0 0 0.0.0.0:4500 0.0.0.0:* 1592/charon
udp 0 0 0.0.0.0:4520 0.0.0.0:* 32138/asterisk
udp 0 0 0.0.0.0:5060 0.0.0.0:* 32138/asterisk
udp 0 0 0.0.0.0:4569 0.0.0.0:* 32138/asterisk
udp 0 0 0.0.0.0:500 0.0.0.0:* 1592/charon
udp 0 0 192.168.201.1:53 0.0.0.0:* 30868/named
udp 0 0 127.0.0.1:53 0.0.0.0:* 30868/named
udp 0 0 0.0.0.0:67 0.0.0.0:* 2055/dhcpd
udp 0 0 0.0.0.0:14403 0.0.0.0:* 1041/dhclient
udp 17920 0 0.0.0.0:68 0.0.0.0:* 1592/charon
udp 0 0 0.0.0.0:68 0.0.0.0:* 1041/dhclient
udp 0 0 0.0.0.0:56417 0.0.0.0:* 2055/dhcpd
udp 0 0 192.168.201.1:123 0.0.0.0:* 1859/ntpd
udp 0 0 127.0.0.1:123 0.0.0.0:* 1859/ntpd
udp 0 0 192.168.201.255:137 0.0.0.0:* 1777/nmbd
udp 0 0 192.168.201.1:137 0.0.0.0:* 1777/nmbd
udp 0 0 0.0.0.0:137 0.0.0.0:* 1777/nmbd
udp 0 0 192.168.201.255:138 0.0.0.0:* 1777/nmbd
udp 0 0 192.168.201.1:138 0.0.0.0:* 1777/nmbd
udp 0 0 0.0.0.0:138 0.0.0.0:* 1777/nmbd
udp 0 0 192.168.201.1:17566 0.0.0.0:* 15760/minidlnad
And your listening TCP ports with the command:
$sudo netstat -anlpt
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 0.0.0.0:5060 0.0.0.0:* LISTEN 32138/asterisk
tcp 0 0 192.168.201.1:8200 0.0.0.0:* LISTEN 15760/minidlnad
tcp 0 0 192.168.201.1:139 0.0.0.0:* LISTEN 2092/smbd
tcp 0 0 0.0.0.0:2000 0.0.0.0:* LISTEN 32138/asterisk
tcp 0 0 192.168.201.1:80 0.0.0.0:* LISTEN 7781/nginx
tcp 0 0 192.168.201.1:53 0.0.0.0:* LISTEN 30868/named
tcp 0 0 127.0.0.1:53 0.0.0.0:* LISTEN 30868/named
tcp 0 0 192.168.201.1:22 0.0.0.0:* LISTEN 2023/sshd
tcp 0 0 0.0.0.0:8888 0.0.0.0:* LISTEN 1919/perl
tcp 0 0 127.0.0.1:953 0.0.0.0:* LISTEN 30868/named
tcp 0 0 192.168.201.1:445 0.0.0.0:* LISTEN 2092/smbd
tcp 0 224 192.168.201.1:22 192.168.201.12:56820 ESTABLISHED 16523/sshd: rui [pr
Now normally NMAP does send a SYN to the port being scanned, and per the TCP protocol, if a daemon/service is bound to the port, it will answer with a SYN+ACK, and nmap will show it as open.

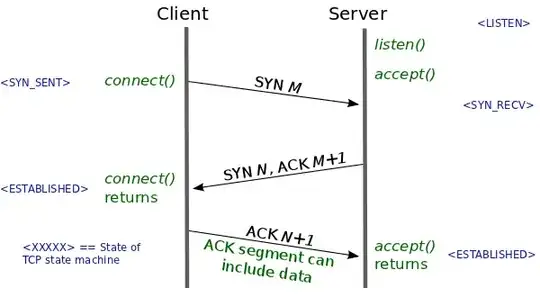

TCP/IP connection negotiation: 3 way handshake
To establish a connection, TCP uses a three-way handshake. Before a
client attempts to connect with a server, the server must first bind
to and listen at a port to open it up for connections: this is called
a passive open. Once the passive open is established, a client may
initiate an active open. To establish a connection, the three-way (or
3-step) handshake occurs:
SYN: The active open is performed by the client sending a SYN to the
server. The client sets the segment's sequence number to a random
value A. SYN-ACK: In response, the server replies with a SYN-ACK.
However, if a service is not running there, TCP/IP defines the kernel will send an ICMP message back with an "Port unreachable" message for UDP services, and TCP RST messages for TCP services.
ICMP Destination unreachable
Destination unreachable is generated by the host or its inbound
gateway[3] to inform the client that the destination is unreachable
for some reason. A Destination Unreachable message may be generated as
a result of a TCP, UDP or another ICMP transmission. Unreachable TCP
ports notably respond with TCP RST rather than a Destination
Unreachable type 3 as might be expected.
So indeed, your UDP scanning to port 80/UDP simply receives an ICMP unreachable message back because there is not a service listening to that combination or protocol/port.
As for security considerations, those ICMP destination unreachable messages can certainly be blocked, if you define firewall/iptables rules that DROP all messages by default, and only allow in the ports that your machine serves to the outside. That way, nmap scans to all the open ports, especially in a network, will be slower, and the servers will use less resources.
As an additional advantage, if a daemon/service opens additional ports, or a new service is added by mistake, it won't be serving requests until it is expressly allowed by new firewall rules.
Please do note, that if instead of using DROP in iptables, you use REJECT rules, the kernel won't ignore the scanning/ TCP/IP negotiation tries, and will answer with ICMP messages of Destination unreachable, code 13: "Communication administratively prohibited (administrative filtering prevents packet from being forwarded)".
Block all ports except SSH/HTTP in ipchains and iptables
