Creating diagrams in ASCII

Question

I am looking for a program which I can use to create ASCII diagrams such these:

    +---------+
    |         |                        +--------------+
    |   NFS   |--+                     |              |
    |         |  |                 +-->|   CacheFS    |
    +---------+  |   +----------+  |   |  /dev/hda5   |
                 |   |          |  |   +--------------+
    +---------+  +-->|          |  |
    |         |      |          |--+
    |   AFS   |----->| FS-Cache |
    |         |      |          |--+
    +---------+  +-->|          |  |
                 |   |          |  |   +--------------+
    +---------+  |   +----------+  |   |              |
    |         |  |                 +-->|  CacheFiles  |
    |  ISOFS  |--+                     |  /var/cache  |
    |         |                        +--------------+
    +---------+

It should preferably be a package available in Debian. The wonderful diagram displayed above is taken from the Linux kernel documentation. I cannot believe they were created by hand. There must be some tool to create them.

You can draw this kind of diagrams from within `vim` using the [DrawIt](http://www.vim.org/scripts/script.php?script_id=40) plugin. — dawud, Apr 26 '14 at 12:00
*"I cannot believe they were created by hand. There must be some tool to create them."* I can easily believe they were created by hand, especially if you were, e.g., working from a sketch or other source for the diagram. That wouldn't take more than 5 minutes. — goldilocks, Apr 26 '14 at 12:05
I can quite easily believe they were created by hand because they're actually quite easy to do if you use a bit of common sense and visualise it in your head first. Of course, it takes a few minutes longer than it would with Asciio or something. — Miles Rout, May 04 '14 at 15:59

slm · Accepted Answer · 2018-05-09T02:33:22.980

asciio

I've used asciio for several years. Many of the diagrams on this site I've created using asciio.

example

  vncviewer         .-,(  ),-.
   __  _         .-(          )-.           gateway           vncserver
  [__]|=|  ---->(    internet    )-------> __________ ------> ____   __
  /::/|_|        '-(          ).-'        [_...__...°]       |    | |==|
                     '-.( ).-'                               |____| |  |
                                                             /::::/ |__|

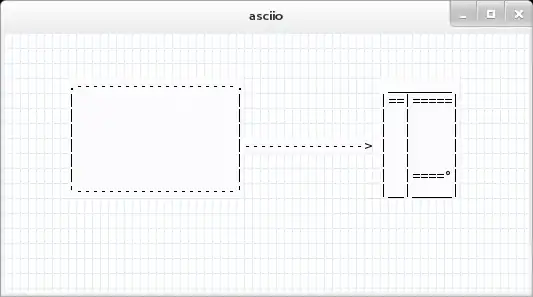

The GUI looks like this.

ss of asciio

NOTE: Everything is driven from the right click menu as well as short-cut keys.

DrawIt

Using vim along with the DrawIt plugin you can also create basic diagrams. A good overview of how to install and use it is available here in this article titled: How To Create ASCII Drawings in Vim Editor (Draw Boxes, Lines, Ellipses, Arrows Inside Text File).

asciiflow

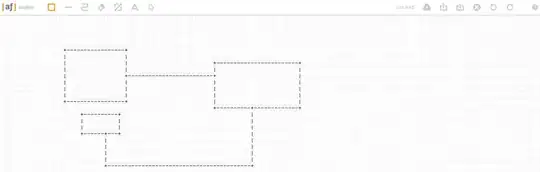

There's a website called asciiflow which is probably the easiest way to draw these types of diagrams.

ss #2

JavE

Another tool, JavE, written in Java that can create ascii diagrams like this as well.

                                 ,'''''''''''''|
                                 | Controller  |
                                 |             |
                                 '`'i''''''''''
                                  ,'        `.
                                ,'            `.
                               -                -
                     ,'''''''''''''|      ,''''''''''''`.
                     |    Model    |______|    View     |
                     |             |      |             |
                      `''''''''''''       '`'''''''''''''

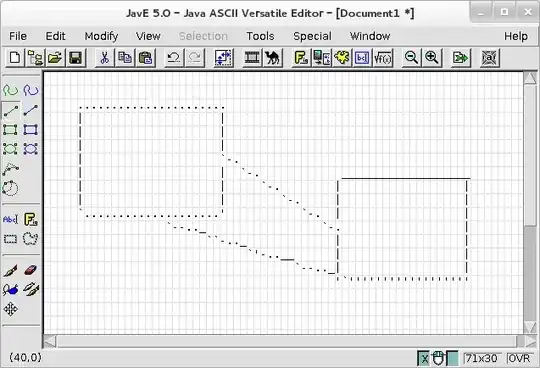

The GUI looks like this:

ss #2

Resources

The Windows installer for asciio from the link no longer works. The installer says it got a 404 error and then aborts. I just used asciiflow instead. — Joseph238, Jul 30 '18 at 22:05
@Joseph238 - thanks for the feedback, given this is Unix & Linux website I'm not sure most passer-by's will care all that much. If you come across a link to it pls let us know. — slm, Jul 30 '18 at 22:23
I recently created [AsciiGrid](https://mbarkhau.keybase.pub/asciigrid/) which uses Svgbob to render diagrams. [Here is the diagram from the original question](https://mbarkhau.keybase.pub/asciigrid/#vvF;AOAOA;ECCCgAgAEBDAAAgAgAnAmAjAnlmrAAeEWETFhzgPyihipDiymSsPgAECCeDgUTEHPMFWETFkxgWCgAgAEizhmsDg0fCOFWHfCMOHViOBi6iAjcilkIgusDiRBECCCgAgAEAAECCeDvjnajjBhRmZkAlKDjbAAREWETFjMgzeDDAhNCTEHPMFAD-kEi0hAEAAEj9nYgABnFjMq2jMn7iAEBiMjGoXqFo7hADBiMjGuNh_CCeDgUTEHPMFWEJNFKiyAAZETFfEWgDgOCCEurhAglfCWHHLfCPh_k1nUyhqMhLBECCCgAgAE1cnZji) — mbarkhau, Dec 30 '19 at 22:41
+1 for [asciiflow](http://asciiflow.com/)! I love its simple, easy-to-use online interface, and since it has a website you can just go to and start drawing in, it's **so** easy to get started with! — Gabriel Staples, May 05 '20 at 03:28

score 33 · Answer 2 · answered Apr 26 '14 at 12:07

33

Have a look at artist-mode or picture-mode for Emacs (see also this screencast). You might also want to check out ditaa.

answered Apr 26 '14 at 12:07

tkrennwa

3,445
1
14
17

+1 Re: "ditaa" So someone might do these by hand so they could be converted to a graphical format... – goldilocks Apr 26 '14 at 12:18
2

Yes, ditaa is a great combination with asciio. – Martijn Heemels Apr 27 '14 at 01:43
The screencast link is dead. – jcubic Dec 17 '18 at 08:20

score 31 · Answer 3 · answered May 04 '14 at 09:56

31

I found another answer; I am not sure it is fully usable, but remember that GNU roff (groff) has a processor for the Pic language as well as an ascii postprocessor; thus you may have a try at something like that (if you use Linux, everything should probably already be installed). Write a file called test.roff containing:

.PS
box "box1";
line
box "box2";
.PE

Then type: groff -Tascii -p test.roff, and you should get:

+------+     +------+
|      +-----|      |
| box1 |     |box2  |
+------+     +------+

Regards.

answered May 04 '14 at 09:56

Thomas Baruchel

1,143
1
8
14

One might want to [remove control characters](http://lists.gnu.org/archive/html/groff/2002-03/msg00047.html) by using `groff -Tlatin1 -P-c -P-b -P-u` – mlt Jun 30 '15 at 03:59
`groff` is preinstalled on Mac OS X :) – Sridhar Sarnobat Jun 18 '17 at 00:58
How to make it go down the page instead of across? – Dan Jacobson Mar 02 '23 at 01:47

score 24 · Answer 4 · edited Aug 09 '17 at 18:41

24

Maybe you will be interested in graph-easy.

Example:

   echo "[ Bonn ] -- car --> [ Berlin ], [ Ulm ]" | graph-easy

produces:

    +--------+  car   +-----+
    |  Bonn  | -----> | Ulm |
    +--------+        +-----+
      |
      | car
      v
    +--------+
    | Berlin |
    +--------+

You can install it with the following commands:

wget http://search.cpan.org/CPAN/authors/id/T/TE/TELS/graph/Graph-Easy-0.64.tar.gz
tar -xzf Graph-Easy-0.64.tar.gz
cd Graph-Easy-0.64
perl Makefile.PL
make test
sudo make install
PATH=$PATH:/opt/local/libexec/perl5.12/sitebin/graph-easy

(Note the version numbers in the two uppermost and the last line - they may change)

Some nice screenshots are available on the pages of lddot and dothost (because both tools are wrappers for graph-easy).

edited Aug 09 '17 at 18:41

Sridhar Sarnobat

1,692
18
27

answered May 04 '14 at 09:05

Thomas Baruchel

1,143
1
8
14

3

Looks like the latest version is now hosted on Github: https://github.com/ironcamel/Graph-Easy – Sridhar Sarnobat Jun 18 '17 at 01:47
3

I guess this works a lot like Graphviz, but Graphviz doesn't have ASCII output which is a shame. – Sridhar Sarnobat Jun 18 '17 at 01:49
1

graph-easy uses the DOT language, the same as Graphviz – ivarec Jan 25 '19 at 16:43
https://linux.die.net/man/1/graph-easy – Sridhar Sarnobat Jul 17 '21 at 00:26
How to make it go down the page instead of across, by default? – Dan Jacobson Mar 02 '23 at 01:47

score 4 · Answer 5 · answered Jul 14 '19 at 03:27

For anyone using a Mac (not the original poster) there's a very nice tool called Monodraw. Of course you're going to pay a few bucks for the fact that it's highly polished and powerful and intuitive, but if this is something you do often, it's a handy tool to have available and $10 is peanuts compared to the time you'll save. If you don't do this often, there's a free trial available, so you're all set. It can even export to SVG

No, I don't work for the company. I'm just a happy user.

score 3 · Answer 6 · answered Aug 21 '21 at 17:44

The ADia project aims to render ASCII diagrams using a human-readable language:

diagram: Foo
sequence:
foo -> bar: Hello World!

Output

 DIAGRAM: Foo

 +-----+             +-----+
 | foo |             | bar |
 +-----+             +-----+
    |                   |
    |~~~Hello World!~~~>|
    |                   |
    |<------------------|
    |                   |
 +-----+             +-----+
 | foo |             | bar |
 +-----+             +-----+

Read the documentation or Try the live demo page at github.io.

score 1 · Answer 7 · answered Nov 07 '20 at 00:36

1

I just used https://textik.com/ and it worked great.

answered Nov 07 '20 at 00:36

MarcH

261
2
5
