Attempting to Abbreviate kSAR's PDF output

Question

I'm currently writing a cronjob around kSar's command line (non-GUI) options in order generate PDF's. I'm just going to email a PDF of the previous day's activity to a different webmaster (basically just a power user) every day after midnight.

This is the command I'm trying to use:

java -jar /usr/local/ksar/kSar.jar -cpuFixedAxis \
      -input /var/log/sa/sa$(date +"%d" -d yesterday) \
      -outputPDF /tmp/SAR-$(date +"%d-%m-%Y" -d yesterday).pdf

The above properly generates a PDF document and I can email it to whomever I want.

Problem is that there's a lot more information on there than I really think he needs and I really see him getting confused and either asking me to help him understand it or just disregarding the email and pinging me personally whenever he has a question about load or performance (which will be a lot).

I'm seeing that kSar has a -graph option for generating only a certain subset of graphs, but I have no idea how to use it, and it's not online anywhere. -help says to feed it a list of the graphs I want to generate but there's no indication of how I'm supposed to figure out what each graph is technically called. I thought -showOnlygraphName was my savior, but that just popped up the regular non-PDF GUI for the relevant SAR and it looks identical to if I had left -showOnlygraphName to begin with.

At this point I'm grasping at straws so any help would be appreciated.

EDIT:

Just so you you can see the syntax I'm using when I say in the comments that I've tried the graph names @derobert suggested:

$ java -jar kSar.jar -graph SWAP -input sar31 -outputPDF out.pdf
time to parse: 695ms number of line: 4073 line/msec: 5.0
jadavis@XXX-R9ZN2ZV /cygdrive/c/Documents and Settings/JADAVIS/Documents/kSar-5.0.6
$ echo $?
0
jadavis@XXX-R9ZN2ZV /cygdrive/c/Documents and Settings/JADAVIS/Documents/kSar-5.0.6
$ ls out.pdf
ls: cannot access out.pdf: No such file or directory
$ java -jar kSar.jar -graph LOAD -input sar31 -outputPDF out.pdf ; ls out.pdf
time to parse: 681ms number of line: 4073 line/msec: 5.0
ls: cannot access out.pdf: No such file or directory

What's directly above is being done in cygwin, but the syntax works (i.e generates PDF output) if I just don't try to restrict which graphs to generate. I've also tried a variety of casings and quotation styles.

EDIT #2:

Partial success in this area. I found this page and following its instructions I was able to generate a PDF that only had CPU activity in it:

jadavis@XXX-R9ZN2ZV /cygdrive/c/Documents and Settings/JADAVIS/Documents/kSa                            r-5.0.6
$ java -jar kSar.jar -input sar31 -outputPDF out.pdf -graph all-cpu; ls -l out.pdf                          time to parse: 712ms number of line: 4073 line/msec: 5.0
-rwx------+ 1 jadavis mkpasswd 112772 Apr  3 18:51 out.pdf

Answer 1

Here's the list of -graph options available in kSar v5.0.6 -

all-cpu
bond0-if1
bond0-if2
eth0-if1
eth0-if2
eth2-if1
eth2-if2
LinuxcswchSar
LinuxioSar
LinuxkbmemSar
LinuxkbmiscSar
LinuxkbswpSar
LinuxloadSar
LinuxnfsdSar
LinuxnfsSar
LinuxpageSar
LinuxpgpSar
LinuxprocSar
LinuxsockSar
LinuxswapSar
lo-if1
lo-if2

Here's an example of how I generate a report -

java -jar kSar.jar -input /apps/kSar-5.0.6/logs/sa01 -showCPUstacked -cpuFixedAxis -graph 'all-cpu bond0-if1 LinuxcswchSar LinuxioSar LinuxkbmemSar LinuxloadSar LinuxpgpSar LinuxprocSar'   -outputPDF /apps/kSar-5.0.6/logs/sa01.pdf

Answer 2

The answer that isn't really an answer: For those following along at home, you'll noticed I've had a heck of a time trying to get kSar to do this for me. I don't doubt that there actually is a solution with kSar but I've come to the hard earned conclusion that kSar just kind of sucks. I don't work with non-Linux platforms anymore (used to manage Solaris, not so much now) so any advantage of using SAR data is now negligible if it still exists at all.

My personal solution:

I've since re-focused my energies on getting this to work with collectd and have in the last 30 minutes had much more success than I've had in three days with off-and-on struggles with kSar. This is what I did on my RHEL5 and RHEL6 servers (obviously YMMV):

1. Ensured the EPEL repository is installed on the server.

2. Installed the collectd, collectd-web, collectd-apache, and collectd-mysql packages.

3. Edited the /etc/httpd/conf.d/collectd.conf file as follows:

ScriptAlias /collectd/bin/ /usr/share/collectd/collection3/bin/
Alias /collectd/ /usr/share/collectd/collection3/

<Directory /usr/share/collectd/>
AddHandler cgi-script .cgi
DirectoryIndex bin/index.cgi
Order Deny,Allow
Deny from all
Allow from 192. 10.
</Directory>

4. Ensured the following plugins were enabled in /etc/collectd.conf:

LoadPlugin apache
LoadPlugin cpu
LoadPlugin df
LoadPlugin disk
LoadPlugin fscache
LoadPlugin interface
LoadPlugin load
LoadPlugin memory

5. Started the collectd service and issued a service httpd reload command.

Waited a short sample period, and access collectd-web (third part web-interface written in perl) by visiting:

• http://MYHOSTNAME/collectd/bin/index.cgi

Shortly thereafter I was generating all the charts he'd be interested in seeing and none of it would likely confuse him. I'm also seeing that some collectd stats can get detail oriented so it may be useful for my purposes as well.

The collectd-web interface is fully functional but pretty plain looking and hard to customize. Still it's definitely easier to just give him this URL so I'll just play around with different frontends.

Should someone post a kSar specific answer (or if I find one in the mean time) I'll accept that as the answer. But ultimately I think it's time to just place a single black rose on SAR's coffin and finally just let it die.

EDIT:

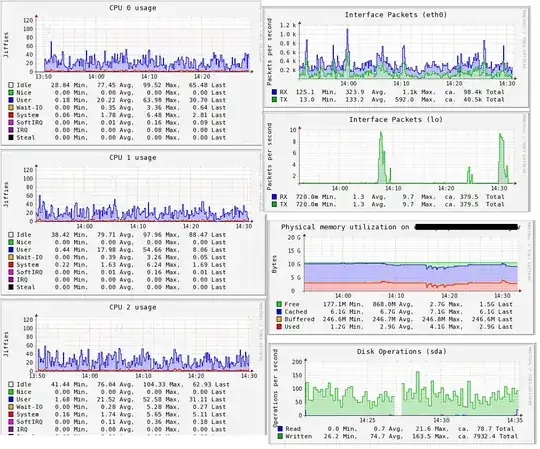

For the curious here are some sample random charts:

There are also some charts for queue merges and filesystem utilization for disks, and run queue size and context switches for CPU. It also appears to support notification on threshold violations. So it appears to be a fairly decent tool for general purpose performance monitoring and capacity planning.
